Certified European Distributor

Sirio - SY 50-5

Artikelnummer: 2106901005
Fabrieksnummer: 2106901.00/5

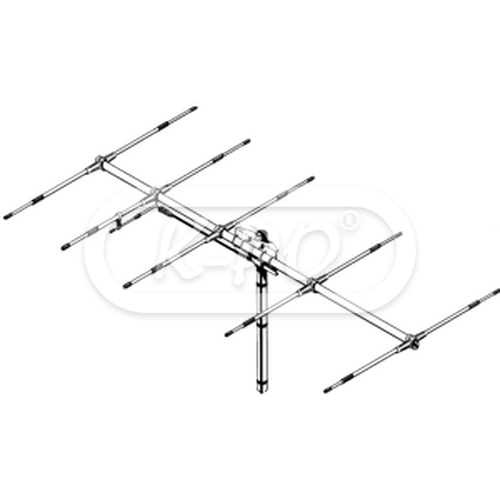

Directional 5 elements Yagi antenna for 50 - 54 MHz (tunable) with gamma match feed system. Elements and boom of generous section are completely made of anticorodal aluminum. The elements are fixed to the boom by a strong die-cast metal support to get the maximum strength. All connections are waterproof and it is supplied with UHF female connector. All metal parts and hardware are weather resistant.

We can not ship this product, shipping cost on request.

Frequentie bereik: 50 - 54 MHz tunable
Niet op voorraad - Levertijd in overleg
€ 159,95 (132.19 excl. 21% BTW)

Elektrische eigenschappen

  • Electrical type: 5 elements Yagi
  • Gain: 8.4 dBd, 10.5 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 1.4 MHz @ 50.5 MHz ≤ 1.5
  • Power continues: 600 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear horizontal

Fysieke eigenschappen

  • Materials: Aluminium, galvanized steel, zamak
  • Mast Ø: 35 - 50 mm
  • Max wind resistance: 120 km/h
  • Length: 4030 mm
  • Height: 100 mm
  • Width: 3038 mm
  • Weight: 6100 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female
  • Boom length: 4030 mm
  • Boom diameter Ø: 33 mm
  • Max. element length: 3038 mm
  • Element diameter Ø: 12 - 16 mm
  • Tuning radius: 2700 mm

In de verpakking

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
