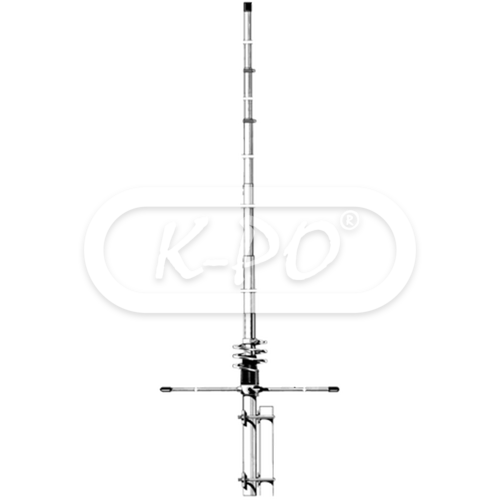

Sirio - Tornado 50-60

Artikelnummer: 2108901

Fabrieksnummer: 2108901.00

5/8 λ ground plane aluminium base antenna for 50 - 60 MHz with 4 radials. 1000 Watts power handling.

Frequentie bereik: 50 - 60 MHz tunable

Vandaag verstuurd - Stock: 5

€ 79,94 (66.07 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 5/8 λ ground plane
• Gain: 1.2 dBd, 3.35 dBi
• VSWR: ≤ 1.2 @ tuned frequency
• Bandwidth: 3.1 MHz ≤ 2.0
• Power continues: 1000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Aluminium, brass, galvanized steel, thermoplastic UV stabilized
• Mast Ø: 35 - 42 mm
• Max wind resistance: 150 km/h
• Height: 4100 mm
• Weight: 2250 gram
• Mounting type: On mast
• Antenna connector: UHF-female
• Radial length: 1170 mm

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 221
