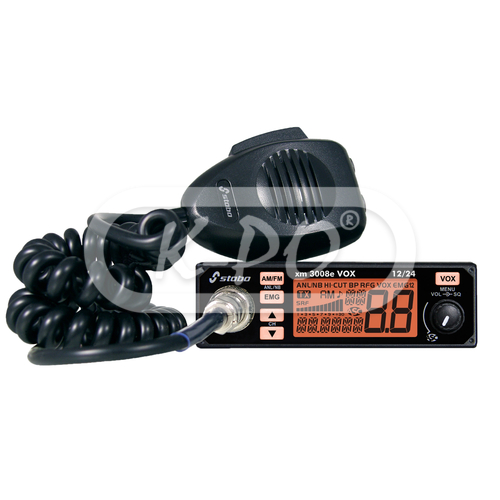

Stabo - XM 3008E VOX

Artikelnummer: 30119

Fabrieksnummer: 30119

Barcode: 4010384301194

The Stabo XM 3008E VOX is a mobile CB radio device and can be used on 12 and 24 Volt. The XM 3008E has an adjustable VOX function (5 levels) that makes it possible to communicate handsfree with theoptional Stabo VOX microphone.

Frequentie bereik: 26.965 - 27.405 MHz

Vandaag verstuurd - Stock: 7

€ 259,94 (214.83 excl. 21% BTW)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
• VOX Function: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• External speaker socket: Yes
• S-meter: Yes
• RF gain: Yes
• TOT (time out timer): Yes
• External VOX socket: Yes
• Roger Beep: Yes

Elektrische eigenschappen

• Voltage: 13,8 Volt / 24 Volt /
• Operating temperature: -10° to +55° C

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: <3 mV
• Frequency allowance: ± 600 Hz
• Drain: 13.2 Volt: 2 A max / 24 Volt: 2 A max

Receiver

• AM sensitivity: ≤ -107 dBm 20 dB SINAD
• FM sensitivity: ≤ -107 dBm 20 dB SINAD
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 2 Watt
• Internal speaker: 8 Ohm
• Squelch sensitivity: min. 0.2 μV
• Image rejection: 70 dB
• Drain: 300 mA nominal / 750 mA max.

Fysieke eigenschappen

• Length: 165 mm
• Height: 35 mm
• Width: 115 mm
• Weight: 600 gram
• Antenna connector: UHF (PL)
• Mike connector: 6 pin connector

In de verpakking

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, German, French, Polish,

Downloads

• Informatieblad: User manual stabo xm3008e VOX DE EN FR PL
