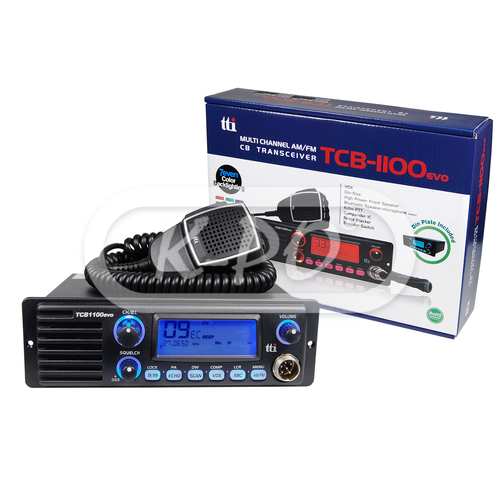

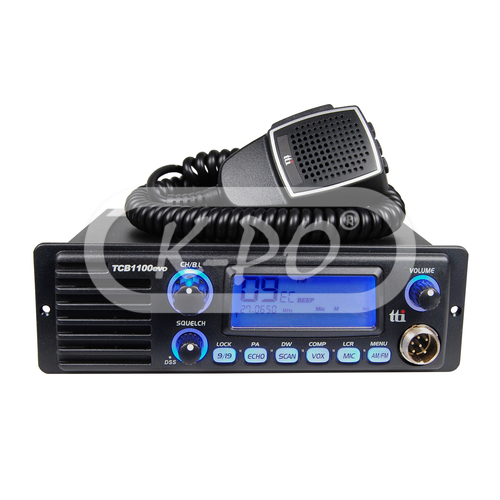

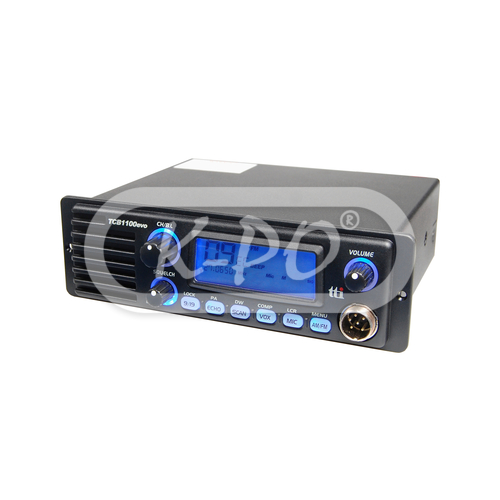

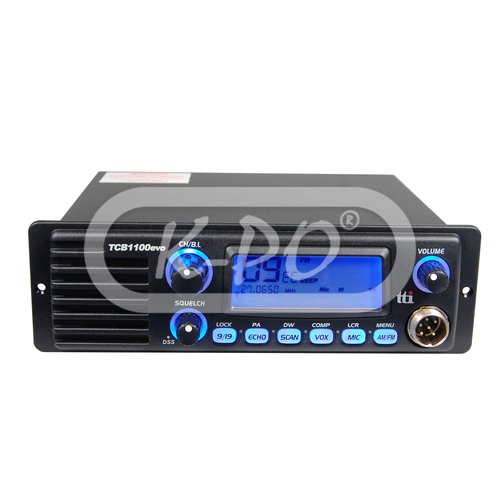

TTI - TCB-1100evo

Artikelnummer: 481100

Fabrieksnummer: 481100

Barcode: 8809075210015

The TTI TCB-1100evo is a high quality front speaker CB radio and the successor of the popular TTI TCB-1100.

New features and functions on the TTI TCB-1100evo are:

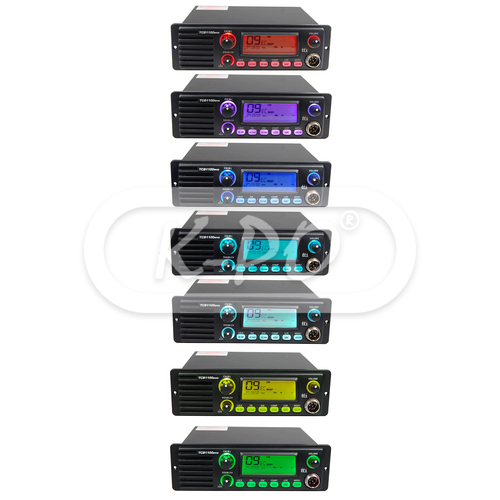

• 7 display colors
• Improved VOX function, can be (de)activated directly from the radio or microphone
• PA function and PA jack on the backside
• Echo function
• Mic-PTT jack on the backside
• Mic-gain, 3 levels

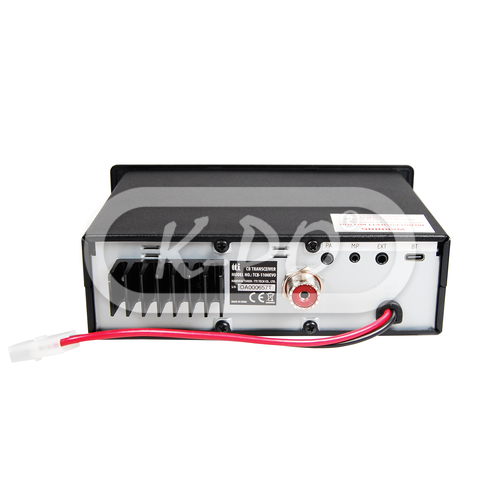

• Cooling rib on the backside

Frequentie bereik: 26.965 - 27.405 MHz

Vandaag verstuurd

€ 159,95 (132.19 excl. 21% BTW)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
• Channels: 40 AM / FM
• Front speaker: Yes
• Display type: Multi-color backlight
• Display colors: Green / Orange / Purple / Dark Blue / Light Blue / Yellow / Clear Blue
• Export version: 10-12 Watts
• VOX Function: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / DSS (Dynamic Squelch System) / Manual squelch /
• Emergency channel: Yes
• Keypad lock: Yes
• Scan function: Yes
• Quick channel selection: Yes
• External speaker socket: Yes
• External S-meter socket: Yes
• External PA socket: Yes
• S-meter: Yes
• MIC gain: Yes
• TOT (time out timer): Yes
• Dual watch: Yes
• Din mount: Yes
• Attenuation: Yes
• Echo: Yes
• External bluetooth socket: Yes
• Extra PTT/MIC jack: Yes, on backside
• Menu functions: Band selection / Noise Blanker / Beep Tone / Time-out-Timer / Attenuation

Elektrische eigenschappen

• Voltage: 13,8 Volt / 24 Volt /
• Operating temperature: -10° to +55° C
• Operating mode: F3E (FM) / A3E (AM)
• Frequency control: PLL synthesizer
• Frequency tolerance: 0.002%

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Modulation AM: from 85% to 95%
• Modulation FM: 1.8 kHz to ± 0.2 kHz
• Harmonic suppression: Less than -36 dBm

Receiver

• AM sensitivity: 0.7 µV for 10 dB
• FM sensitivity: 0.7 µV for 20 dB SINAD
• Frequency response: 300 Hz - 2.5 kHz
• Adjacent channel selectivity: More than 60 dB
• Maximum audio power: 2 Watts
• Internal speaker: 8 Ohm, round
• Receiving system: Dual conversion superheterodyne
• IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
• Audio distortion: Less then 8% @ 1 kHz
• Image rejection: More than 60 dB
• Conducted spurious: Less than -57 dB
• Squelch: Adjustable, threshold less than 1 µV, DSS less than 2 µV

Fysieke eigenschappen

• Length: 190 mm
• Height: 58 mm
• Width: 175 mm
• Weight: 990 gram
• Antenna connector: UHF (PL)
• Mike connector: 6 pin connector

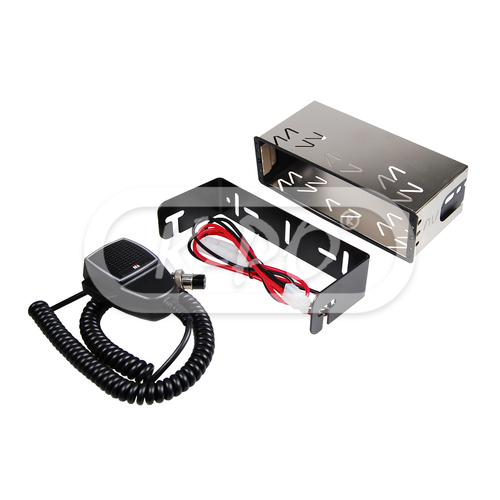

In de verpakking

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English,
• DIN mount: 1 pcs
