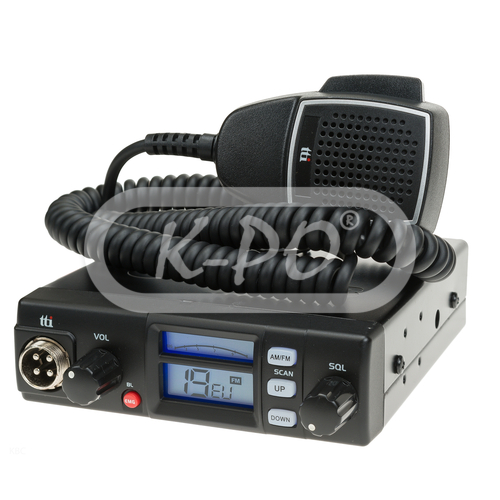

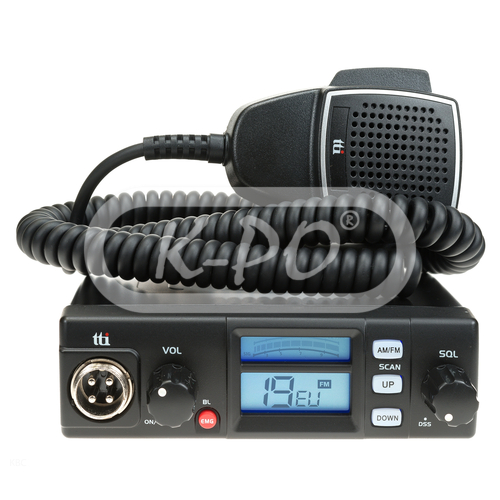

TTI - TCB-565

Artikelnummer: 50565

Barcode: 8809075732159

The TTI TCB-565 is a compact 12/24V CB Radio with dual LCD displays incorporating both channel/country display and digital signal meter. It is a small yet robust multi-channel radio and includes all EU country bands. Other features include; Tri-colour LCD display (Red/Blue/Purple), EMG button, Scan, DSS (Auto-Squeclh) and AM/FM Button.

Frequentie bereik: 26.965 - 27.405 MHz

Niet op voorraad - Levertijd in overleg

€ 69,95 (57.81 excl. 21% BTW)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
Channels: 40 AM / FM
Display type: Multi-color backlight
Display colors: Blue / Red / Purple
Squelch: DSS (Dynamic Squelch System) / Manual squelch /
Emergency channel: Yes
Scan function: Yes
External speaker socket: Yes
External S-meter socket: Yes
S-meter: Yes

Elektrische eigenschappen

Voltage: 13,8 Volt / 24 Volt /
Operating temperature: -10° to +55° C
Operating mode: F3E (FM) / A3E (AM)
Frequency control: PLL synthesizer
Frequency tolerance: 0.002 %

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Modulation AM: from 85% to 95%
Modulation FM: 1.8 kHz to ± 0.2 kHz
Harmonic suppression: More than -36 dBm
Drain: 13.2 Volt: 1.6 A max.

Receiver

AM sensitivity: 0.7 µV for 10 dB
FM sensitivity: 0.5 µV for 20 dB SINAD
Frequency response: 300 Hz - 2.5 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 2 Watt
Internal speaker: 8 Ohm, round
Receiving system: Dual conversion superheterodyne
IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
Audio distortion: Less than 8% @ 1 kHz
Image rejection: 60 dB
Conducted spurious: More than 60 dB
Squelch: Adjustable, threshold less than 1 µV,

Fysieke eigenschappen

Length: 135 mm
Height: 37 mm
Width: 124 mm
Weight: 655 gram

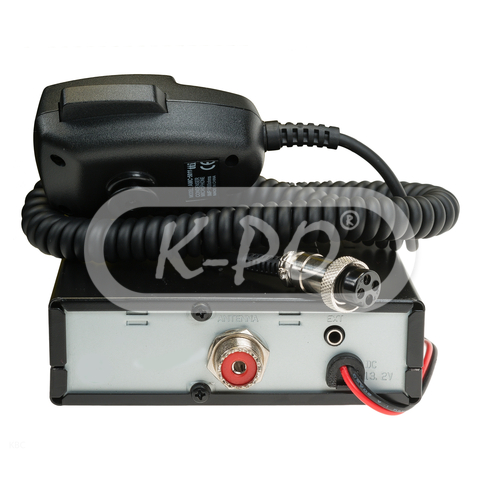

Antenna connector: UHF (PL)
Mike connector: 4 pin connector

In de verpakking

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: Dutch, English, French, Romania, Czech, German,Polish
Microphone holder: 1 pcs
