TTI - TCB-900 HP

Artikelnummer: 49000
Fabrieksnummer: 49000
Barcode: 8809075732210

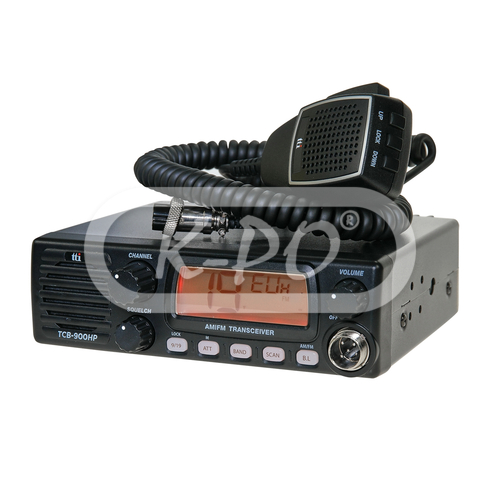

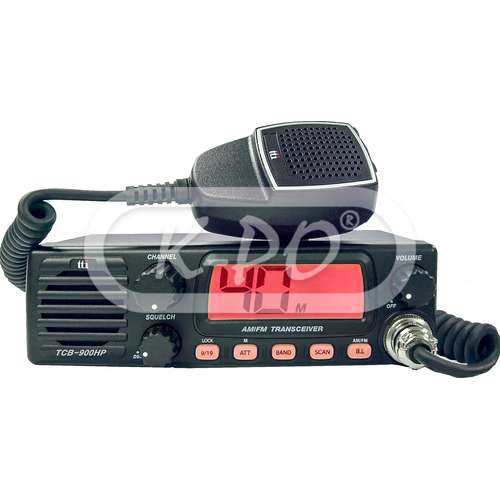

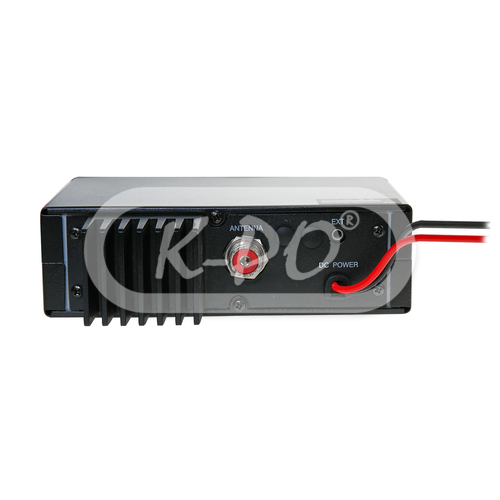

The TTI TCB-900HP is the latest front speaker model in the TTI range. The TCB-900HP radio body has a big cooling rib on the backside. The display has been upgraded with 7 different display colors to choose from.

Frequentie bereik: 26.965 - 27.405 MHz
Vandaag verstuurd
€ 109,95 (90.87 excl. 21% BTW)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.8V DC
  • Channels: 40 AM / FM
  • Front speaker: Yes
  • Display type: LCD display
  • Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
  • Export version: 20 Watt
  • Squelch: DSS (Dynamic Squelch System) / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • TOT (time out timer): Yes

Elektrische eigenschappen

  • Voltage: 13,8 Volt / 24 Volt /
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002 %

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Harmonic suppression: Less than -54 dBm
  • Drain: 13.8 Volt: 1.6 A max.

Receiver

  • AM sensitivity: 1.4 µV for 10 dB
  • FM sensitivity: 0.8 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 2.5 kHz
  • Adjacent channel selectivity: More than 60 dB
  • Maximum audio power: 2 Watt
  • Internal speaker: 8 Ohm, round
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less than 8% @ 1 kHz
  • Image rejection: More than 60 dB
  • Conducted spurious: Less than -57 dB
  • Squelch: Adjustable, threshold less than 1 µV, DSS less than 2 µV

Fysieke eigenschappen

  • Length: 170 mm
  • Height: 51 mm
  • Width: 170 mm
  • Weight: 1100 gram
  • Antenna connector: UHF (PL)
  • Mike connector: 6 pin connector

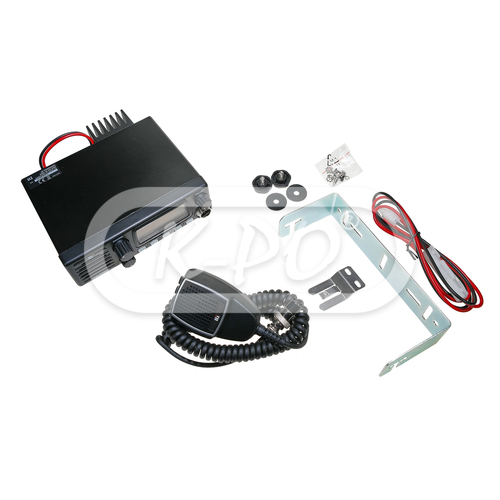

In de verpakking

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Italian, French, Romania, Russian, Spanish
