TTI - TCB-H100 UK

Artikelnummer: 48101

Barcode: 8809075192311

The TTI TCB-H100 is the new compact handheld CB radio from TTI with ECHO function, VOX function, 3 display colors and many more functions. Optional are a 12/24 volt car charger and a 12/24 volt battery eliminator with external antenna connector.

Frequentie bereik: 26.965 - 27.405 MHz

Volgende werkdag verstuurd - Stock: 2

€ 124,94 (103.26 excl. 21% BTW)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
Channels: 40 AM / FM
Display type: Multi-color backlight

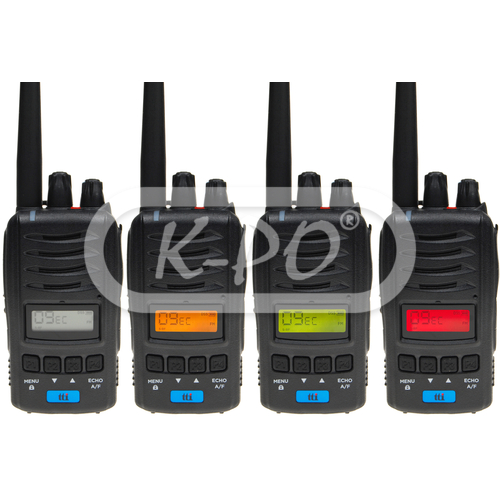

Display colors: Green / Orange / Red
VOX Function: Yes
Squelch: DSS (Dynamic Squelch System) / Manual squelch /
Emergency channel: Yes
Keypad lock: Yes
Hi/Lo power: Yes
Scan function: Yes
External speaker socket: Yes
S-meter: Yes
Echo: Yes
Roger Beep: Yes

Elektrische eigenschappen

Voltage: 7,4 Volt
Operating temperature: -10° to +55° C
Operating mode: F3E (FM) / A3E (AM)
Frequency control: PLL synthesizer
Frequency tolerance: 0.002 %

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Modulation AM: from 85% to 95%
Modulation FM: 1.8 kHz ± 0.2 kHz
Harmonic suppression: Less than-54 dBm
Drain: AM full Mod. 1.6 A Max.

Receiver

AM sensitivity: 1.4 µV for 10 dB
FM sensitivity: 0.8 µV for 20 dB SINAD
Frequency response: 300 Hz - 3 kHz
Maximum audio power: 1 Watt @ 16 Ohm
Internal speaker: 16 Ohm, round
Receiving system: Dual conversion superheterodyne
IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
Audio distortion: Less than 8% @ 1 kHz
Image rejection: More than 60 dB
Squelch: Adjustable, threshold less than 1 µV, DSS less than 2 µV

Fysieke eigenschappen

Length: 57 mm
Height: 116 mm
Width: 39 mm
Weight: 224 gram
Antenna connector: SMA
Accessory connector: 2 pin Standard Icom (S)

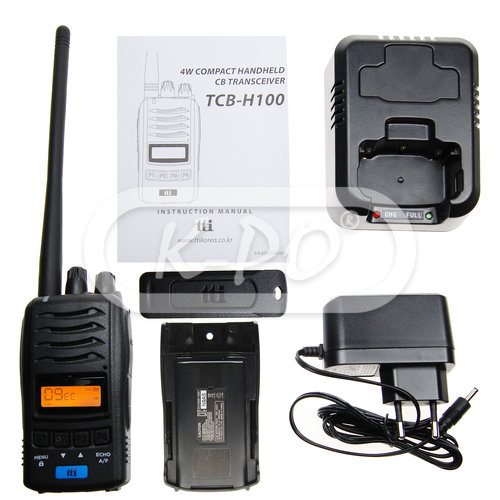

In de verpakking

Transceiver: 1 pcs
User Manual: English
Belt clip: Yes

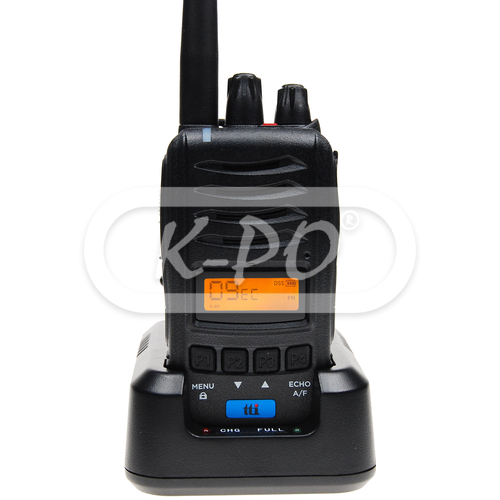

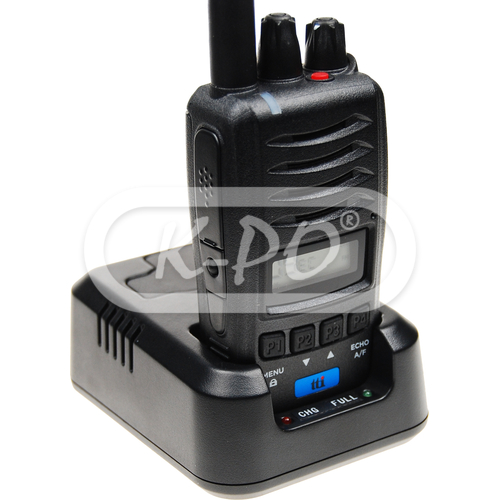

Desktop charger: Yes
Antenna: Yes
UK wall adapter: Yes

Downloads

Informatieblad: 820 TCH0 000 TCB H100 Manual Eng 20191212
