Wouxun - KG-D26 Wouxun - KG-D26 Wouxun - KG-D26 Wouxun - KG-D26 Wouxun - KG-D26 Wouxun - KG-D26 Wouxun - KG-D26 Wouxun - KG-D26

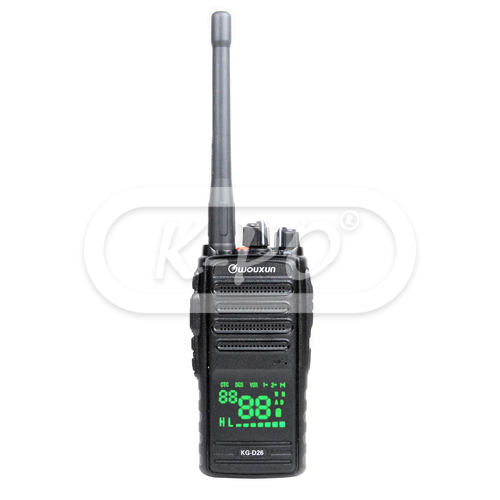

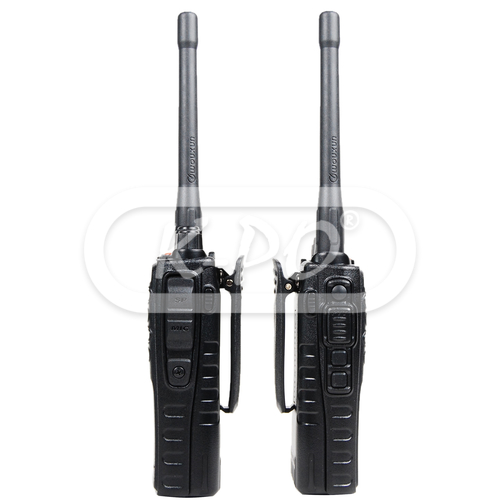

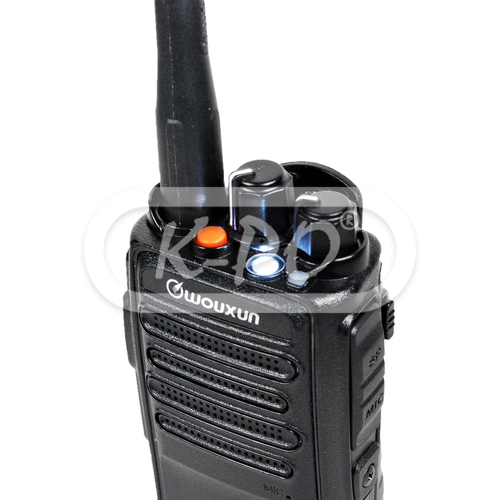

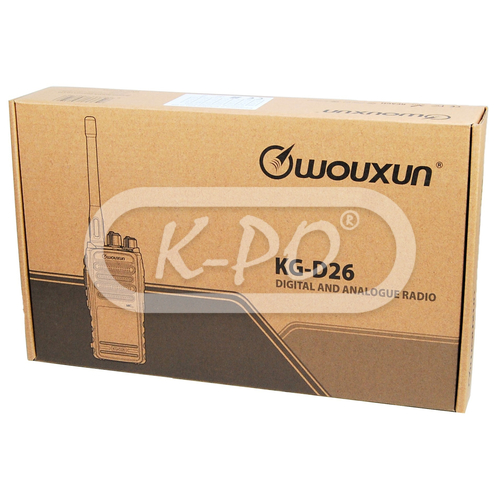

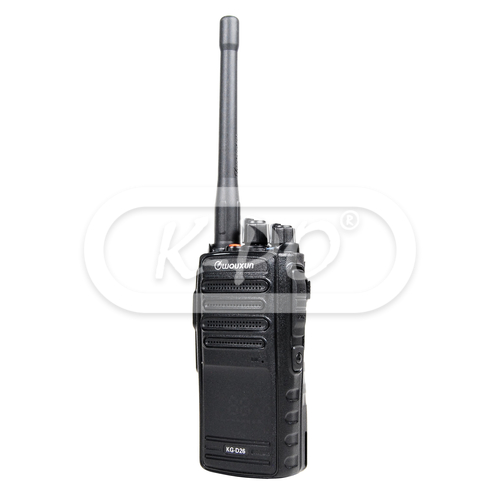

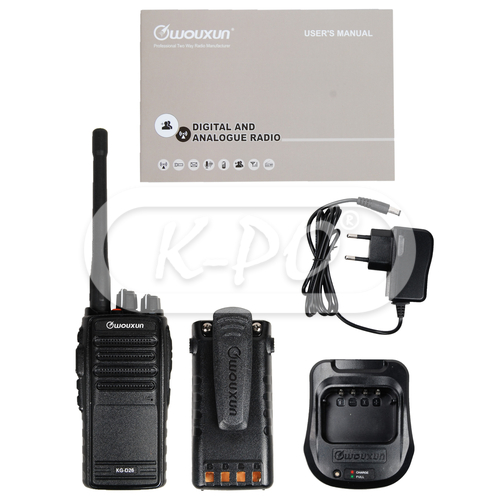

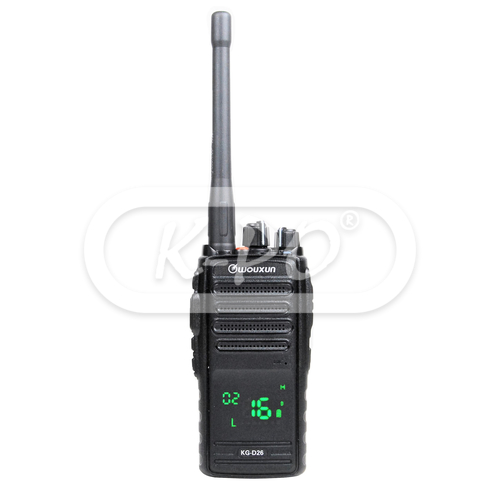

Wouxun - KG-D26

Artikelnummer: 34026
Barcode: 6946351706106

The new Wouxun KG-D26 dPMR is fully compatible, analog and digital, with the Kenwood TK-3401D, TK-3601D and TK-3701D series. The hidden display is integrated in the strong radio body, which prevent it from damaging. It will clearly show you the: Channel number, Analogue / digital mode, Current zone, High / low power,Narrow / wide bandwidth, Battery status, Signal status, VOX indicator, DCS/CTCSS indicator and Time slot 1 / 2 indicator.

Vandaag verstuurd
€ 159,95 (132.19 excl. 21% BTW)

Features

  • Number of channels: 16
  • Number of zones: 99 programmable (3 zones preprogrammed)
  • Output power: 0.5 / 6 Watt
  • Channel spacing analogue: 12.5 kHz
  • Channel spacing digital: 6.25 kHz
  • Battery saver mode: Yes
  • Call alert: Yes
  • Programmable function keys: Yes
  • PC programming: Yes
  • Display: Yes
  • Display colors: Green
  • High/low power: Yes
  • Battery capacity: Li-ion 2000 mAh
  • Accessory connector: 2-Pin Kenwood
  • Voice guide: English and Chinese
  • VOX function: Yes, activation by software
  • Scan function: Yes, activation by software
  • Flaslight: Yes
  • RX group list: 32 groups, 8 members per group
  • Scanning list: 16 groups, 16 channels per group

Electrical data

  • Channels: 10000
  • Frequency stability: +/- 1.0 ppm
  • RX sensitivity: 0.25 uV
  • Microphone modulation: 120 mV
  • Microphone distortion: 12 mV
  • Adjacent channel power: > 60 dB at narrow bandwidth
  • Error radio: -118 dBm
  • Offset frequency: 100 Hz
  • Modulation: +3dB –3dB
  • Spurious Emission: > -57 d
  • Audio: +2 dB -10 dB
  • Audio output: Internal speaker 1 W - 12 Ohm / external output 1 W - 16 Ohm

Fysieke eigenschappen

  • Length: 53 mm
  • Height: 245 mm
  • Width: 33 mm
  • Weight: 245 gram
  • Antenna connector: SMA male
  • Operating voltage: 7.5V DC +/- 20%
  • Battery life: Battery save off: 24 hours, battery save on: 30 hours (5% transmit, 5% receive, 90% standby)

Downloads
