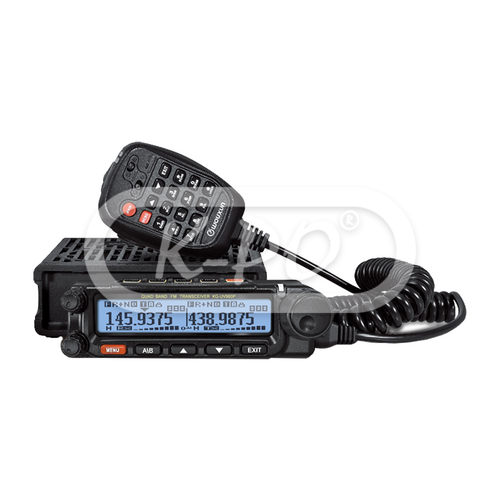

Wouxun - KG-UV980P (Quad Band)

Artikelnummer: 34980

The Wouxun KG-UV980P is a Quad Band transceiver suitable for 28-29 / 50-52 / 144-146 / 430-440 MHz. The KG-UV980P will be deliverd complete with microphone and mounting bracket.

Frequentie bereik: TX: 28-29 / 50-52 / 144-146 / 430-440 MHz, RX: 26-29.995 / 50-54.995 / 65-108 / 108-180.995 / 320-349.995 / 400-479.995 / 700-987.995 MHz

Niet op voorraad - Levertijd in overleg

€ 369,95 (305.74 excl. 21% BTW)

Features

• Display: Yes, multiple backlight colors
• DTMF: Yes, decoding and encoding
• Priority channel scan: Yes
• High/low power selection: Yes, APO power management
• Quadband: Yes
• Receiver type: Superheterodyne
• Voice guide: English and Chinese
• DCS codes: Yes, non-standard setting freely
• CTCSS codes: Yes, non-standard setting freely
• Program: Yes, by computer
• QT/DQT: Yes, decoding, encoding and scan
• Calls: Yes, group and selective calls
• Stun/Kill function: Yes
• Scrambler: Yes, 8 groups
• Caller ID: Yes, on display
• Receiving: Yes, eight bands
• Transmitting: Yes, four bands (Including SW)
• Dual frequency display: Yes
• Dual independant operating system: Yes
• Twin band / same band simultaneous reception: Yes

Elektrische eigenschappen

• Frequency step: 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
• Channels: 999
• Wide and narrow bandwidth selection: Yes
• Operating temperature: -20℃ to +60℃
• Automatic temperature detection: Yes

Transmitter

• Power output (Watts): UHF: 40/25/10/5 Watts - VHF: 50/25/10/5 Watts
• Frequency stability: ±2.5 PPM
• Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
• Spurious: Wide: ≤60 dB / Narrow: ≤60 dB
• Audio response: Wide: 0.3-3.0 kHz +1 to -3 dB / Narrow: 0.3-3 kHz +1 to -3 dB
• Signal to Noise Ratio: Wide: ≤40 dB / Narrow: ≤36 dB
• Work mode: F2D / F3E

Receiver

• Sensitivity: ≤0.25 μV
• Audio distortion: ≤5%
• Audio power output: transceiver≤3w , hand microphone ≤1w
• Frequency stability: ±2.5 PPM
• Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB
• Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB
• Spurious response: Wide: ≤70 dB / Narrow: ≤70 dB
• Audio response: Wide: 0.3-3.0 kHz +1 to -3 dB / Narrow: 0.3-3 kHz +1 to -3 dB
• Signal to noise ratio: Wide: ≤45 dB / Narrow: ≤40 dB

Fysieke eigenschappen

• Length: 140 mm
• Height: 44 mm
• Width: 207 mm
• Weight: 1438 gram
• Antenna connector: UHF (PL)
• Mike connector: RJ45 connector

In de verpakking

• Transceiver: Yes
• Microphone: Yes
• Mounting bracket: Yes
• DC power cable: Yes
• Installation manual: English
• Fuse: 2x extra
• Extension cable: Yes, for front panel
• Remote front panel bracket: Yes
• Microphone holder: Yes with screws
• Switchboard: Yes, tiltable
