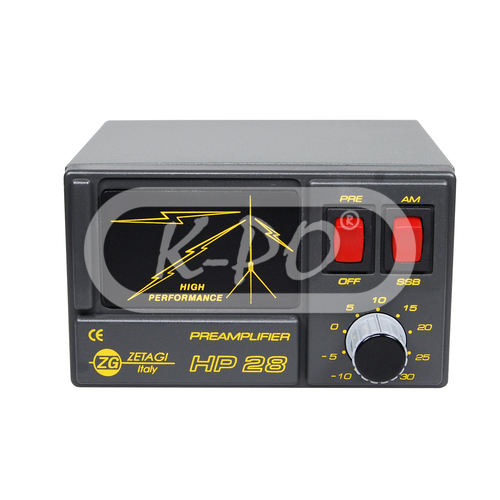

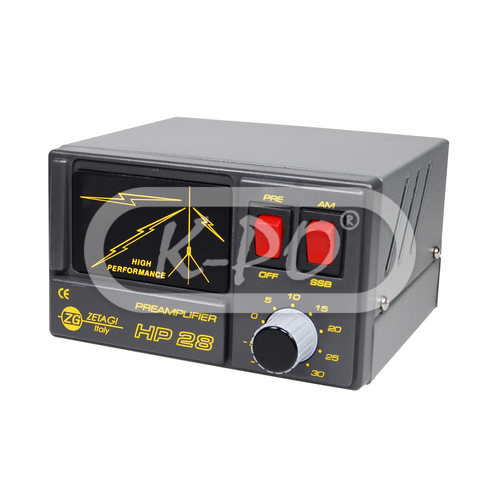

Zetagi - HP 28

Artikelnummer: 30

The Zetagi HP 28 is an antenne pre-amplifier escpecially suitable for CB radios. The pre-amplifier is equiped with an AM luminous modulation meter and several switches to adjust. This product can be used on AM-FM-SSB and has 2 UHF (PL) connectors

Frequentie bereik: 26-30 MHz

Vandaag verstuurd - Stock: 2

€ 52,95 (43.76 excl. 21% BTW)

Elektrische eigenschappen

• Input power (Watts): 1-15 AM-FM
• Max output power (Watts): 50 (PEP)
• Max output power SSB (Watts): 50 (PEP)
• Pre-amplifier: Yes
• AM luminous modulation meter: Yes
• Transmission Insertion Loss: 0.2 dB
• Current drain: 100 mA
• Gain: 25 dB (adjustable)

Fysieke eigenschappen

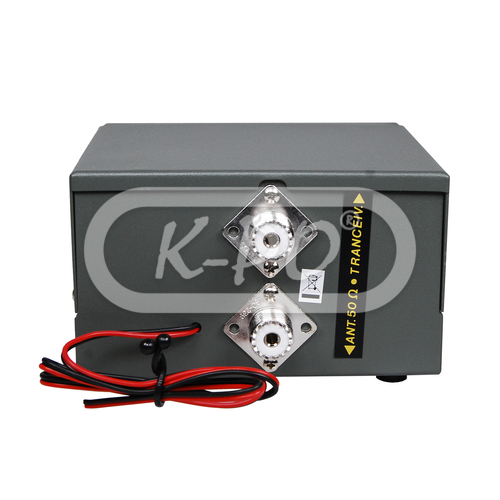

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 130 mm
• Height: 80 mm
• Width: 130 mm
• Weight: 600 gram

In de verpakking

• Amplifier: Yes
• DC power cord: Yes
• Installation manual: English
