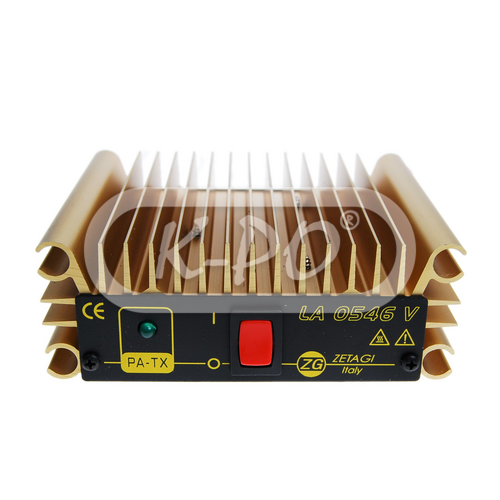

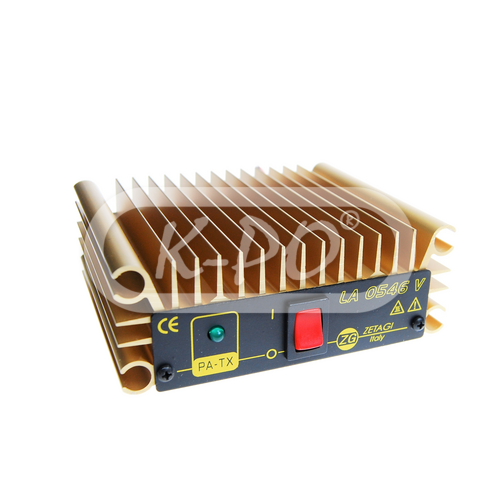

Zetagi - LA0546V

Artikelnummer: 546

The Zetagi LA0546V is a HF power amplifier suitable for the 155 - 165 MHz frequency. The input power is 1 - 3 Watts and the max. output power of the amplifier is 45 Watts AM-FM-SSB

Frequentie bereik: 155 - 165 MHz

Volgende werkdag verstuurd - Stock: 2

€ 119,95 (99.13 excl. 21% BTW)

Elektrische eigenschappen

• Input power (Watts): 1 - 3 AM-FM-SSB
• Max output power (Watts): 45 AM-FM
• Max output power SSB (Watts): 45 SSB
• Intermittent operation: 1'on 1' off (@R.temp = 21°C)
• Impedance: 50 Ohm
• Fuse: 1x 5 A

Fysieke eigenschappen

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 120 mm
• Height: 44 mm
• Width: 130 mm
• Weight: 700 gram

In de verpakking

• Amplifier: Yes
• Installation manual: English, German, French, Italian,
