Zetagi - MB+4 P4

Artikelnummer: 910023

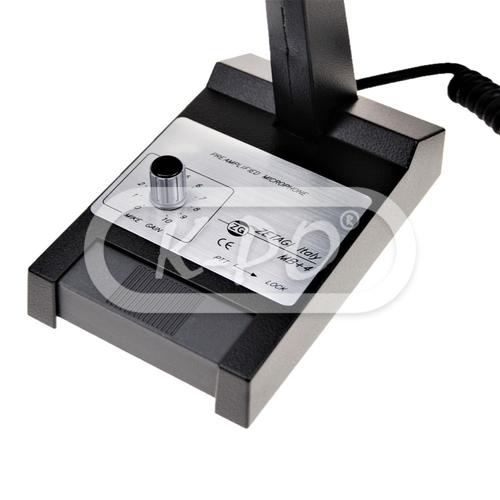

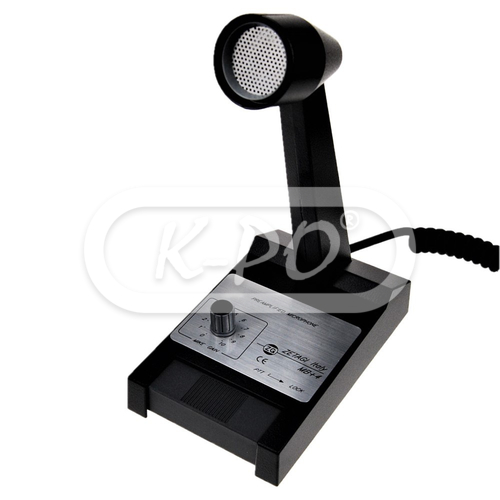

The Zetagi MB+4 4-Pin is a very solid and robust desk microphone. The MB+4 has a rotary knob to adjust the mike gain and has a 4 pin microphone connector. The MB+4 works on a 9 Volt battery (not included).

Niet op voorraad - Levertijd in overleg

€ 67,95 (56.16 excl. 21% BTW)

Features

• Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK II / President Valery Classic / President Wilson /
• Lock button: Yes
• Mike gain function: Yes

Elektrische eigenschappen

• Frequency response: 250 – 3500 Hz
• Output level: -23 (0 dB = 1V/μB)
• Impedance: 0 – 5000 Ohm
• Battery: 9 Volt battery 6LR61 (not included)

Fysieke eigenschappen

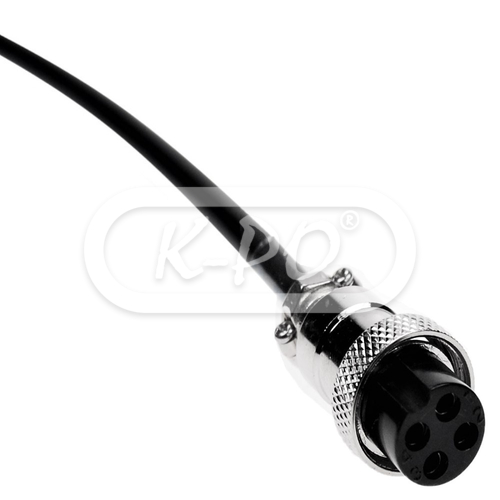

• Microphone connector: 4-pin
• Length: 95 mm
• Height: 230 mm
• Width: 160 mm
• Weigth: 1005 gram

Microphone wiring

• Receive: Pin 3
• Transmit: Pin 4
• Mic Audio: Pin 1
• Ground: Pin 2
