Zetagi - MB+4 P6 Zetagi - MB+4 P6 Zetagi - MB+4 P6

Zetagi - MB+4 P6

Artikelnummer: 910520

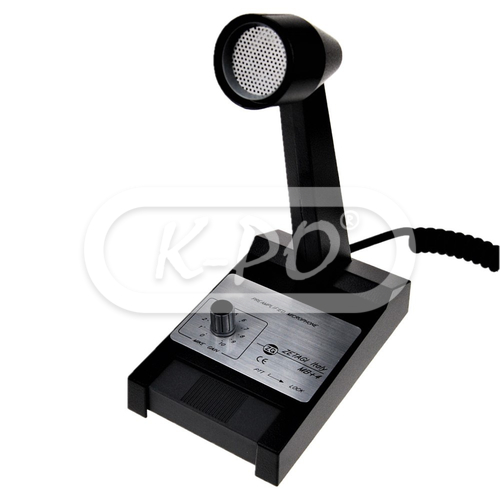

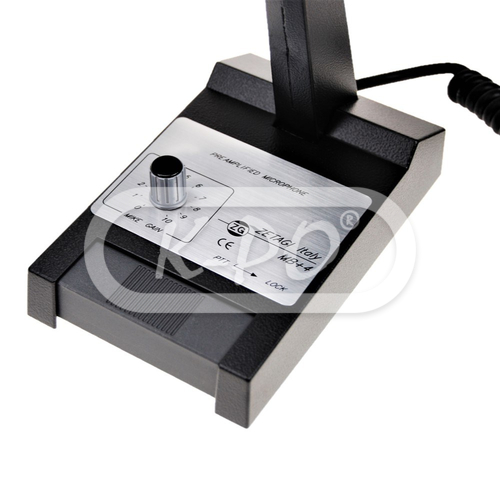

The Zetagi MB+4 P6 is a very solid and robust desk microphone. The MB+4 has a rotary knob to adjust the mike gain and has a 6 pin microphone connector. The MB+4 works on a 9 Volt battery (not included).

Vandaag verstuurd
€ 79,90 (66.03 excl. 21% BTW)

Features

  • Suitable for: 6-pin standard connector / Midland Alan 48 Excel / Midland Alan 48 Plus / Midland Alan 48 PRO / Midland Alan 78 Plus / Midland Alan 78 PRO / President Andy / President Barry ASC / President Barry II ASC / President Bill ASC / President Grant Classic / President Harry ASC / President Harry II ASC / President Harry III ASC / President Henry ASC / President Jackson II / President JFK II / President Jimmy II ASC / President Johnny / President Johnny ASC / President Johnny II / President Johnny III / President Johnson II / President Johnson II VOX / President Martin ASC / President MC Kinley / President Taylor II Classic / President Taylor III ASC / President Taylor IV ASC / President Teddy / President Teddy II ASC / President Tommy / President Truman / President Richard / President Ronald / President Walker / President Walker II ASC /
  • Lock button: Yes
  • Mike gain function: Yes

Elektrische eigenschappen

  • Frequency response: 250 – 3500 Hz
  • Output level: -23 (0 dB = 1V/μB)
  • Impedance: 0 – 5000 Ohm
  • Battery: 9 volt battery 6LR61 (not included)

Fysieke eigenschappen

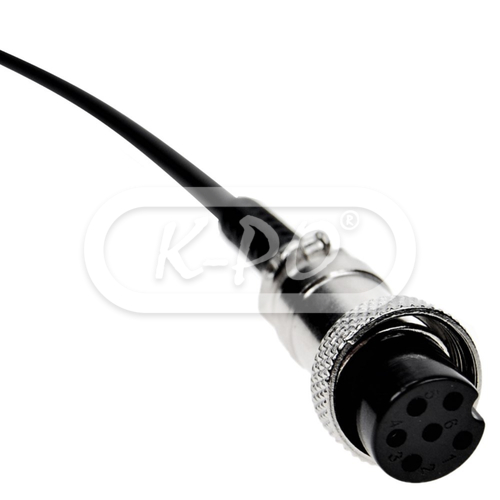

  • Microphone connector: 6-pin
  • Length: 95 mm
  • Height: 230 mm
  • Width: 160 mm
  • Weigth: 1005 gram

Microphone wiring

  • Receive: Pin 2
  • Transmit: Pin 3
  • Mic Audio: Pin 1
  • Ground: Pin 5
