Zetagi - MB+5 P4

Artikelnummer: 910510

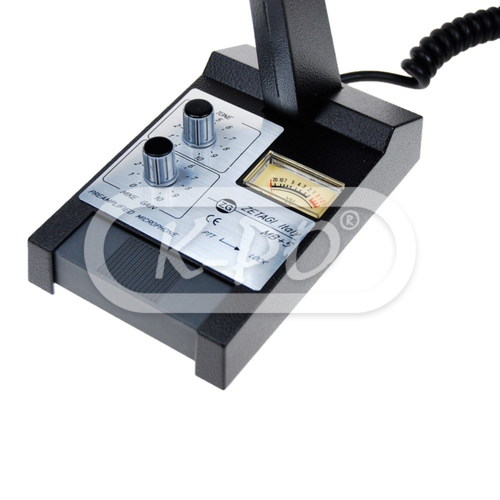

The Zetagi MB+5 is a very solid and robust desk microphone. The MB+5 has rotary knobs to adjust the volume and tone functions. The microphone has a 4 pin microphone connector and works on a 9 Volt battery (not included).

Niet op voorraad - Levertijd in overleg

€ 82,95 (68.55 excl. 21% BTW)

Features

• Suitable for: 4-pin standard connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK II / President Valery Classic / President Wilson /
• Lock button: Yes
• Mike gain function: Yes
• Tone function: Yes

Elektrische eigenschappen

• Frequency response: 250 – 3500 Hz
• Output level: -23 (0 dB = 1V/μB)
• Impedance: 0 – 5000 Ohm
• Battery: 9 Volt battery 6LR61 (not included)

Fysieke eigenschappen

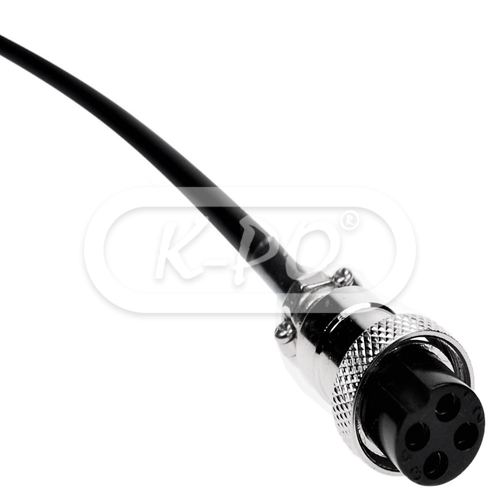

• Microphone connector: 4-pin
• Length: 95 mm
• Height: 230 mm
• Width: 160 mm
• Weigth: 1100 gram

Microphone wiring

• Receive: Pin 3
• Transmit: Pin 4
• Mic Audio: Pin 1
• Ground: Pin 2
