Zetagi - P27M

Artikelnummer: 921506

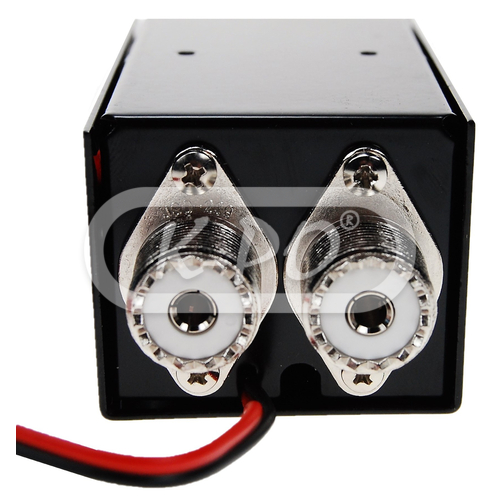

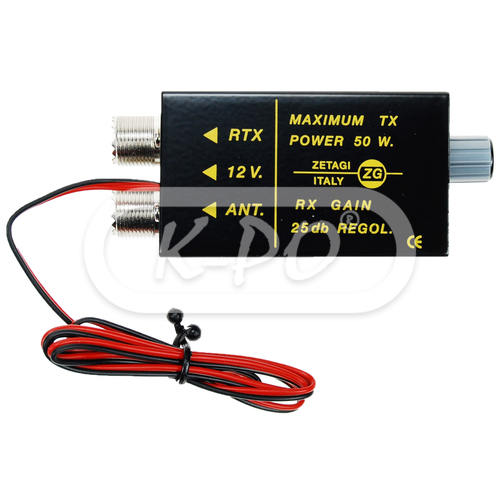

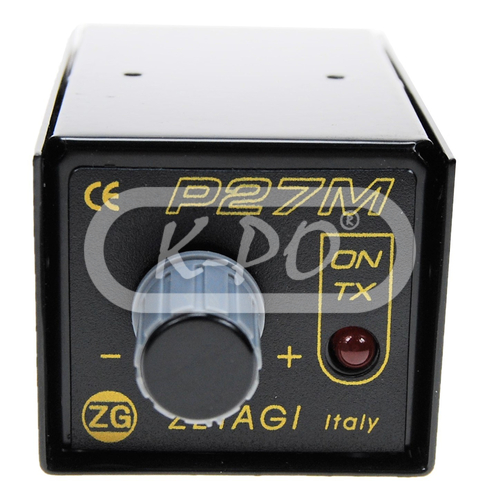

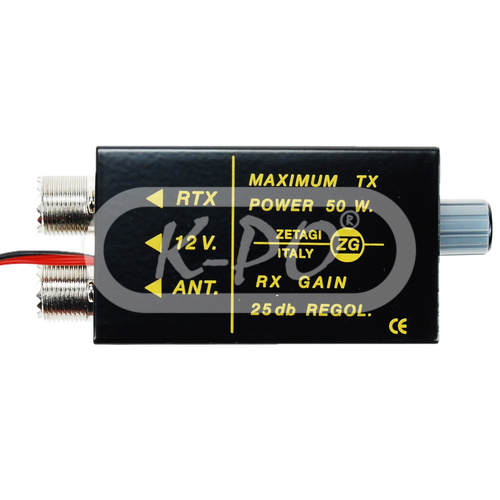

The Zetagi P27M is an antenne pre-amplifier escpecially suitable for CB radios. The pre-amplifier can be used on AM-FM-SSB and has 2 UHF (PL) connectors.

Frequentie bereik: 26-30 MHz

Vandaag verstuurd - Stock: 5

€ 43,95 (36.32 excl. 21% BTW)

Elektrische eigenschappen

• Max output power (Watts): 15 AM-FM
• Max output power SSB (Watts): 50 (PEP)
• Pre-amplifier: Yes
• Transmission Insertion Loss: 0.2 dB
• Current drain: 100 mA
• Gain: 25 dB (adjustable)

Fysieke eigenschappen

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 45 mm
• Height: 45 mm
• Width: 110 mm
• Weight: 220 gram

In de verpakking

• Amplifier: Yes
• DC power cord: Yes
• Installation manual: English
